Electrostatic Transducer for the Violin and Viola

The STAT-V SET

includes pickup, cable and battery-powered STAT-PRE preamp with volume control.
(see STAT-B for STAT-PRE specifications)
The STAT Series of contact microphones has been specially developed to bring out the best sound qualities of bowed stringed instruments in louder musical environments, or in amplified performance situations.

The bridge-mounted STAT-V for violin and viola is designed to accurately reproduce the warm sound of the instrumentís strings. It gives depth and body to lower strings and reproduces the clarity and brightness of higher ones. Impressively resistant to feedback, the STAT-V is a great choice for loud musical environments, or rock /jazz/fusion performances with high levels of amplification.

The standard STAT-V SET includes pickup, cable and battery-powered STAT-PRE preamp with volume control.


stat v
STAT-V

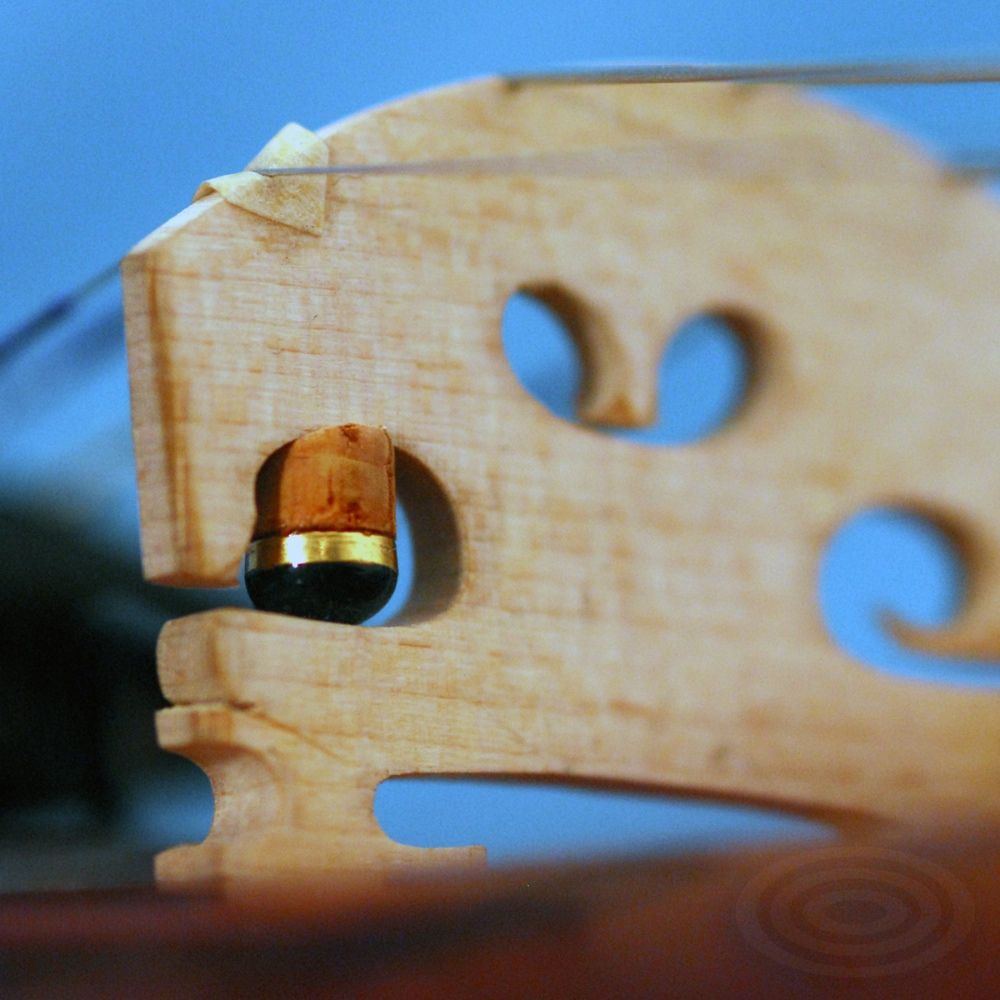

stat v installed
STAT-V installed


stat pre stat-pre


Stat-V set $459.00


The standard STAT-V PRO
includes pickup, cable and Schertler's Yellow Single preamp with regulated AC power supply.
The player controls gain, bass, treble, resonance, and more ...

yellow single preamp yellow single preamp


Standard Stat-V Pro set with Yellow Single Preamp $699.00


The STAT-V Road
includes pickup, cable and Schertler's Yellow Blender preamp with regulated AC power supply.
The player controls gain, bass, treble, resonance, and more ...

Standard Stat-V Road set with Yellow Blender preamp $879.00


stat b yellow blender Yellow Blender preamp
Prices for individual components:

Stat V microphone:

$239.00


Stat pre preamp

$199.00


Yellow single preamp

$499.00


Yellow Blender preamp:

$699.00


STAT V microphone SPECIFICATIONS

Nominal Impedance ............. 2 Kohm
Frequency Response ........... 60 TO 12 KHz
Dynamic Range......................70 dB
Sensitivity (on instrument).......ca. -20 dB
Temperature Range .............. -10 to 50 deg C
Contacts..................................Gold Plated
Connection............................. Chinch (RCA) to 1/4" jack
Weight .................................... < 1 oz
